Name: Safty Long Life LFP 12V 24V Lithium Battery Free Show Case
Brand: CSSUN
Availability: InStock

Server Rack Lithium Battery

Server Rack Lithium Battery is low voltage

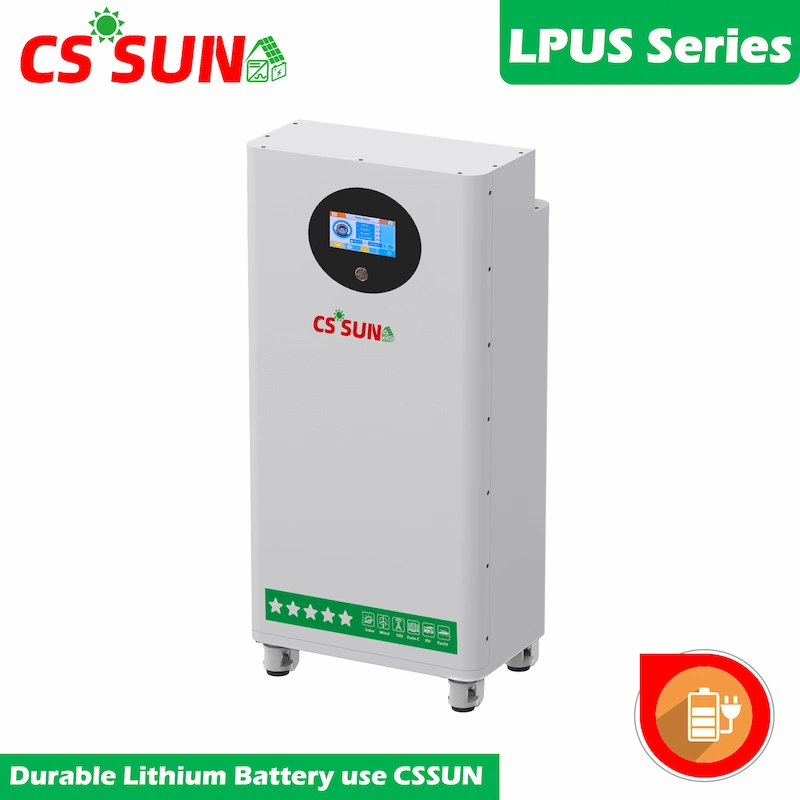

Floor Standing LiFePO4 Battery

LPUS is a high-capacity floor-standing LiFePO4 battery

LV & HV Battery System

LV & HV LiFePO4 Battery Energy Storage

CHARACTERISTICS 12V 24V 48V Lithium Battery

CSSUN LFP SERIES Lithium Iron Phosphate (LiFePO4) Batteries have the longest life among battery fields.

Voltage: 12.8V, 25.6V,38.4V, 51.2V

Capacity: 12.8V7Ah~12.8V628Ah, 25.6V10Ah~25.6V314Ah, 51.2V50Ah，100Ah

Designed floating service life: 20years @25°C/77°F

Cyclic usage: 100% DOD>4000cycles

Cyclic usage: 80% DOD>6000 cycles

> Summary for LifePO4 Battery To Replace SLA Battery

Lead Acid Replacement Lithium battery (LiFePO₄ battery) has been designed to replace lead acid battery in given space with high energy density. Cell With UL9540A, UN38.3, CE, IEC62619 test report approval, this battery also support parallel connection to extend capacity as per requirements.

> Features for LifePO4 Battery To Replace SLA Battery

CSSUN LiFePO4 battery is the newest lithium-ion battery that adopts advanced technology, Own Longest Cycle Life: Offers up to 20 times longer cycle life and five times longer float /calendar life than the lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

> Advantages of LifePO4 Battery To Replace SLA Battery

Direct Lead Acid Battery (AGM/GEL/Lead Carbon) replacement;

Environment friendly, without any heavy metals;

No maintenance is required throughout the lifetime;

High energy density and conversion efﬁciency;

Great high-temperature performance;

Safety in use： Advanced intelligent BMS inside, No explosion, No fire;

Faster charge， 1 hour of charging can provide up to 90% charge (Optional);

High cycle times and long service life of>6000 cycles @100% DOD;

Ultra-low self discharge rate <1.5%/month;

>BMS for LifePO4 Battery To Replace SLA Battery

Overcharge detection function

Over-discharge detection function

Over-current detection function

Short detection function

Balance function

Temperature protection

> Applications for LifePO4 Battery To Replace SLA Battery

Ø Solar power generation grid, Ø Off Grid energy storage systems, Ø Wind Power Systems,

Ø Hybrid energy storage systems, Ø Home energy storage systems, Ø Telecom Station

Ø Renewable energy storage, Ø Smart power grids and micro-grids system

Ø Distributed energy storage system, Ø UPS and Inverter systems, Ø Emergency lighting system

Ø Electric Powered Vehicles, Ø Golf Cars and Buggies, Ø Tour bus, Ø Sweeper, Ø Floor cleaning machines,

Ø Wheel Chairs, Ø Power Tools, Ø Electric Powered Toys, Ø Control System, Ø Medical Equipments,

Ø Forklift, Ø Marine, Ø RV, Ø Boats, Ø Pumps, and so on.

> LFP Delivery time

Normal, 20-25 days for production
As a factory, we Can Support Urgent projects within 7-10 days.
OEM brand is free of charge.

Model	Voltage	Capacity	Dimension（mm)			Weight	Cell
Model	(V)	(Ah)	L	W	H	kgs	Connect	Cycle
LFP12V7.0	12.8V	7Ah	151	65	94	0.71kgs	4S1P C	≥6000 50%DoD
LFP12V12	12.8V	12Ah	151	99	99	1.50kgs	4S2P C	≥6000 50%DoD
LFP12V20	12.8V	20Ah	181	77	170	3.50kgs	4S3P C	≥6000 50%DoD
LFP12V30	12.8V	30Ah	267	77	172	4.30kgs	4S6P C	≥6000 50%DoD
LFP12V40	12.8V	40Ah	267	77	172	5.40kgs	4S6P C	≥6000 50%DoD
LFP12V50	12.8V	50Ah	223	150	177	6.50kgs	4S1P S	≥6000 80%DoD
LFP12V60	12.8V	60Ah	223	150	177	7.20kgs	4S10P C	≥6000 50%DoD
LFP12V75	12.8V	75Ah	256	165	210	8.55kgs	4S13P C	≥6000 50%DoD
LFP12V80	12.8V	80Ah	256	165	210	9.25kgs	4S13P C	≥6000 50%DoD
LFP12V100S	12.8V	100Ah	260	168	215	10.5kgs	4S1P S	≥6000 80%DoD
LFP12V100	12.8V	100Ah	330	173	216	11.5kgs	4S1P S	≥6000 80%DoD
LFP12V120	12.8V	120Ah	406	173	236	14.5kgs	4S1P S	≥6000 80%DoD
LFP12V150	12.8V	150Ah	490	171	240	16.5kgs	4S1P S	≥6000 80%DoD
LFP12V200	12.8V	200Ah	520	240	224	21.5kgs	4S2P S	≥6000 80%DoD
LFP12V250	12.8V	250Ah	522	269	224	22.3kgs	4S2P S	≥6000 80%DoD
LFP12V280	12.8V	280Ah	383	193	252	27.1kgs	4S1P S	≥6000 80%DoD
LFP12V300s	12.8V	300Ah	383	193	252	27.1kgs	4S1P S	≥6000 80%DoD
LFP12V314	12.8V	314Ah	383	193	252	27.1kgs	4S1P S	≥8000 80%DoD
LFP12V400	12.8V	400Ah	522	269	218	36.5kgs	4S4P S	≥6000 80%DoD
LFP12V628	12.8V	628Ah	640	245	220	49.0kgs	4S4P S	≥6000 80%DoD
LFP24V10	25.6V	10Ah	181	77	170	3.5kgs	8S2P C	≥6000 50%DoD
LFP24V20	25.6V	20Ah	223	120	175	6.0kgs	8S3P C	≥6000 50%DoD
LFP24V50	25.6V	50Ah	330	173	216	11.5kgs	8S1P S	≥6000 80%DoD
LFP24V60	25.6V	60Ah	407	174	240	15.4kgs	8S1P S	≥6000 80%DoD
LFP24V65	25.6V	65Ah	407	174	240	15.4kgs	8S1P S	≥6000 80%DoD
LFP24V100	25.6V	100Ah	520	238	218	21.5kgs	8S1P S	≥6000 80%DoD
LFP24V120	25.6V	120Ah	520	238	218	23.9kgs	8S1P S	≥6000 80%DoD
LFP24V150	25.6V	150Ah	522	269	218	32.5kgs	8S1P S	≥6000 80%DoD
LFP24V200	25.6V	200Ah	522	269	218	36.5kgs	8S2P S	≥6000 80%DoD
LFP24V314	25.6V	314Ah	640	245	220	49.0kgs	8S2P S	≥6000 80%DoD
LFP48V50H	51.2V	50Ah	520	240	224	21.5kgs	16S1P S	≥6000 80%DoD
LFP48V100	48.0V	100Ah	520	240	224	34.5kgs	15S1P S	≥6000 80%DoD
LFP48V100H	51.2V	100Ah	522	269	224	36.5kgs	16S1P S	≥6000 80%DoD
*NOTE: All Above details shall be changed without prior notice, CSSUN reserves the right to explain & update the lastest information.
